ShowerChannel

ShowerChannel bodies and grates are manufactured from grade 304 stainless steel and comprise a fully welded, integrated outlet. Channels and grates have a shiny surface, minimising cleaning and maintenance for a high class finish. The textured appearance of the grate helps reduce the appearance of finger prints and soap residue.

ACO’s shower drains are available in six standard lengths (700, 800, 900, 1000, 1200 and 1400mm), with the option of a centre or end outlet for versatility in individual applications. A choice of eight award winning grate designs are available and are easily replaced for a new look.

The advantage of a linear grate and body is that it can be located anywhere within the shower area and only requires simple 2D grading of the floor towards the channel.

ShowerChannel
50mm integral outlet for DN50 pipe connection
Flow rate: - at shower entrance 0.4 L/s- against the wall 0.6 L/s (see Product Support for further information.)
Channel width: 84mm
Electropolished finish
Plastic support feet to aid installation
Optional accessories include water activated LED lights and debris strainer (see Accessories for further information)
Option of end or centrally located DN50 outlet
Shallow ‘V’ profile to aid flow of water to outlet

Channel & Grate product table
  Length
(mm)
Centre Outlet
Part No
End Outlet
Part No
Spec
Info

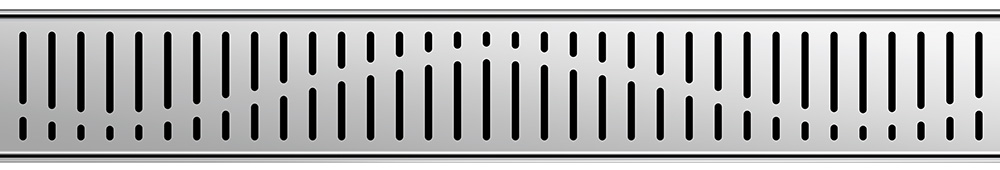

Wave
Grate | Wave
700 141000 141048 pdf
dwg
800 141001 141049
900 141002 141050
1000 141003 141051
1200 141004 141052
1400 141005 141053

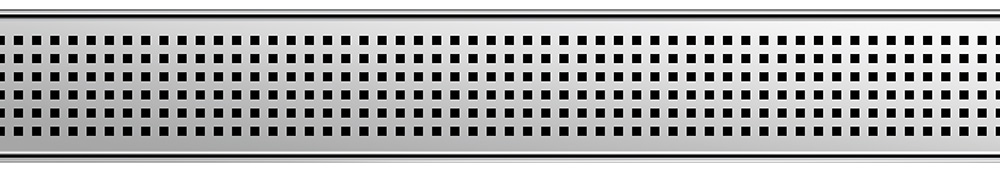

Quadrato
Grate | Quadrato
700 141006 141054 pdf
dwg
800 141007 141055
900 141008 141056
1000 141009 141057
1200 141010 141058
1400 141011 141059

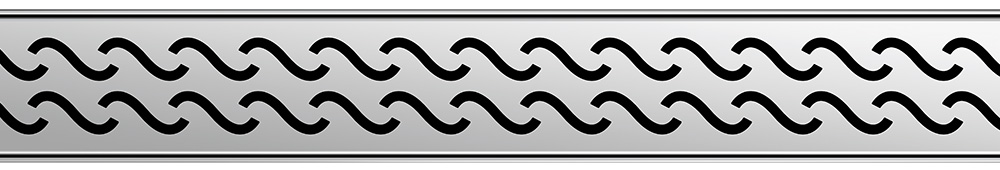

Hawaii
Grate | Hawaii
700 141018 141066 pdf
dwg
800 141019 141067
900 141020 141068
1000 141021 141069
1200 141022 141070
1400 141023 141071

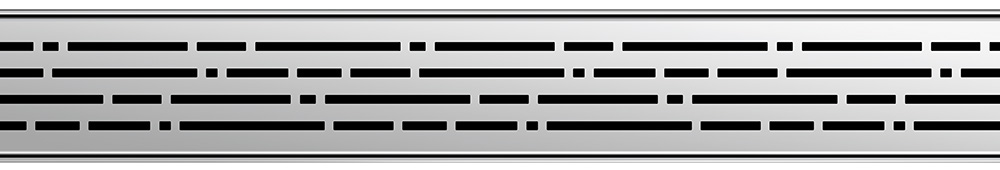

Mix
Grate | Mix
700 141024 141072 pdf
dwg
800 141025 141073
900 141026 141074
1000 141027 141075
1200 141028 141076
1400 141029 141077

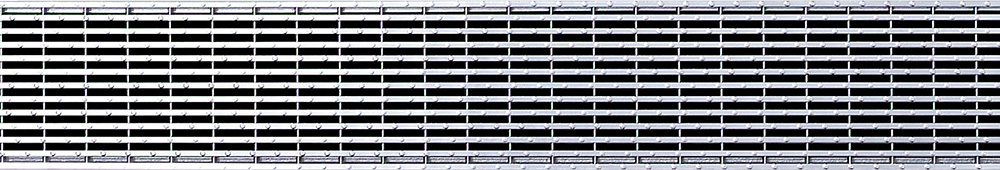

Linéaire
Grate | Linéaire
700 141036 141084 pdf
dwg
800 141037 141085
900 141038 141086
1000 141039 141087
1200 141040 141088
1400 141041 141089
Tile
Grate | Tile
700 141042 141090 pdf
dwg
800 141043 141091
900 141044 141092
1000 141045 141093
1200 141046 141094
1400 141047 141095

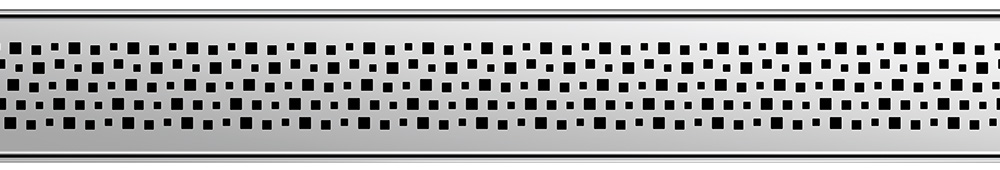

Pixel
Grate | Pixel
700 141030 141078 pdf
dwg
800 141031 141079
900 141032 141080
1000 141033 141081
1200 141034 141082
1400 141035 141083

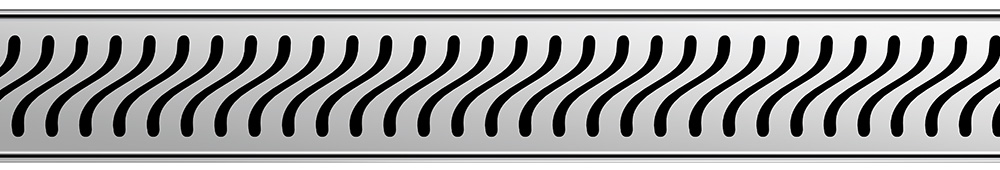

Flag
Grate | Flag
700 141012 141060 pdf
dwg
800 141013 141061
900 141014 141062
1000 141015 141063
1200 141016 141064
1400 141017 141065

Accessories

A number of items are available to enhance the aesthetics and performance of QuARTz by ACO products.

Debris Strainer & Grate Lifter

Debris strainer

A stainless steel strainer is available to fit inside a ShowerChannel to collect hair and other debris.
(Note that strainers will reduce the flow performance of the channels, particularly if not regularly cleaned.)

Grate lifter
Grate lifters are standard with each system and assist with grate removal during maintenance.

Description Part No. Weight (kg)
Debris strainer - electropolished 4030050 0.2
Additional grate lifter 141096 0.1
